| LEADER Industrial Food Dryer | ||||||||||||
| Product Line-Up | ||||||||||||
| 60 series |

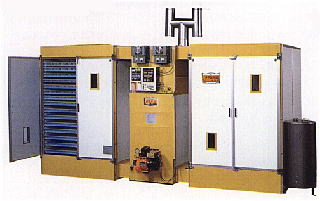

 Photo:SAT-60A |
The Outline of 60 series | ||||||||||
| Amount of Processings: amount of 300-400kg (in case of shiitake mushroom) Tray Accommodations: 60 standard trays Main Equipment Article: An oil burner (GPN-9), 98L oil tank, 60 standard trays, a chimney basic set (stainless steel), a heat insulation panel (drying room principal part), various safeguards, a dryness control device (it changes with model) |
||||||||||||
| Model and the Feature | ||||||||||||
| SAT-60A: CPC(: Computed Program Control) type control board and a damper drive is equipped. It is full automatic-operetion about a dryness process. | ||||||||||||
| ST-60A: ST type control board is equipped. Control of fan is possible (manual setup). Electric thermstat, With a timer. | ||||||||||||
| PC-60A: PC type control board is equipped. Electric thermstat, With a timer. | ||||||||||||
| 30 series |

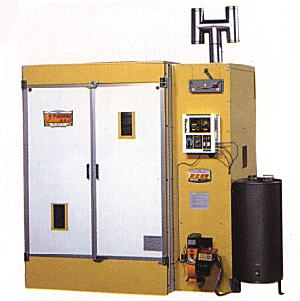

 Photo: SAT-30A |
The Outline of 30 series | ||||||||||
| Amount of Processings: amount of 150-200kg (in case of shiitake mushroom) Tray Accommodations: 30 standard trays Main Equipment Article: An oil burner (SG-10), 98L oil tank, 30 standard trays, a chimney basic set (stainless steel), a heat insulation panel (drying room principal part), various safeguards, a dryness control device (it changes with model) |
||||||||||||
| Model and the Feature | ||||||||||||
| SAT-30A: CPC(: Computed Program Control) type control board and a damper drive is equipped. It is full automatic-operetion about a dryness process. | ||||||||||||
| ST-30A: ST type control board is equipped. Control of fan is possible (manual setup). Electric thermstat, With a timer. | ||||||||||||
| PC-30A: PC type control board is equipped. Electric thermstat, With a timer. | ||||||||||||
| 15 series |
 Photo: ST-15 |
The Outline of 15 series | ||||||||||
| Amount of Processings: amount of 75-100kg (in case of shiitake mushroom) Tray Accommodations: 15 standard trays Main Equipment Article: An oil burner (SG-6), 40L oil tank, 15 standard trays, a chimney basic set (stainless steel), various safeguards, a dryness control device (it changes with model) |
||||||||||||
| Model and the Feature | ||||||||||||
| ST-15: STE type control board is equipped. Control of fan is possible (manual setup). Electric thermstat, With a timer. | ||||||||||||
| PC-15: PCE type control board is equipped. Electric thermstat, With a timer. | ||||||||||||
| 12 series |
 Photo: NB-12 |
The Outline of 12 series | ||||||||||
| Amount of Processings: amount of 60-80kg (in case of shiitake mushroom) Tray Accommodations: 12 standard trays Main Equipment Article: An oil burner (SG-6), 40L oil tank, 12 standard trays, a chimney basic set (stainless steel), various safeguards, a dryness control device (it changes with model) |
||||||||||||
| Model and the Feature | ||||||||||||
| NB-12DX: ST type control board is equipped. Control of fan is possible (manual setup). Thermstat, With a timer. | ||||||||||||
| NB-12: PC type control board is equipped. Thermstat, With a timer. | ||||||||||||
| 6 series |
 Photo: NB-6 |
The Outline of 6 series | ||||||||||
| Amount of Processings: amount of 30-40kg (in case of shiitake mushroom) Tray Accommodations: 6 standard trays Main Equipment Article: An oil burner (SG-6), 40L oil tank, 6 standard trays, a chimney basic set (stainless steel), various safeguards, a dryness control device (it changes with model) |
||||||||||||
| Model and the Feature | ||||||||||||
| NB-6DX: ST type control board is equipped. Control of fan is possible (manual setup). Thermstat, With a timer. | ||||||||||||
| NB-6: PC type control board is equipped. Thermstat, With a timer. | ||||||||||||
|
|
||||||||||||
